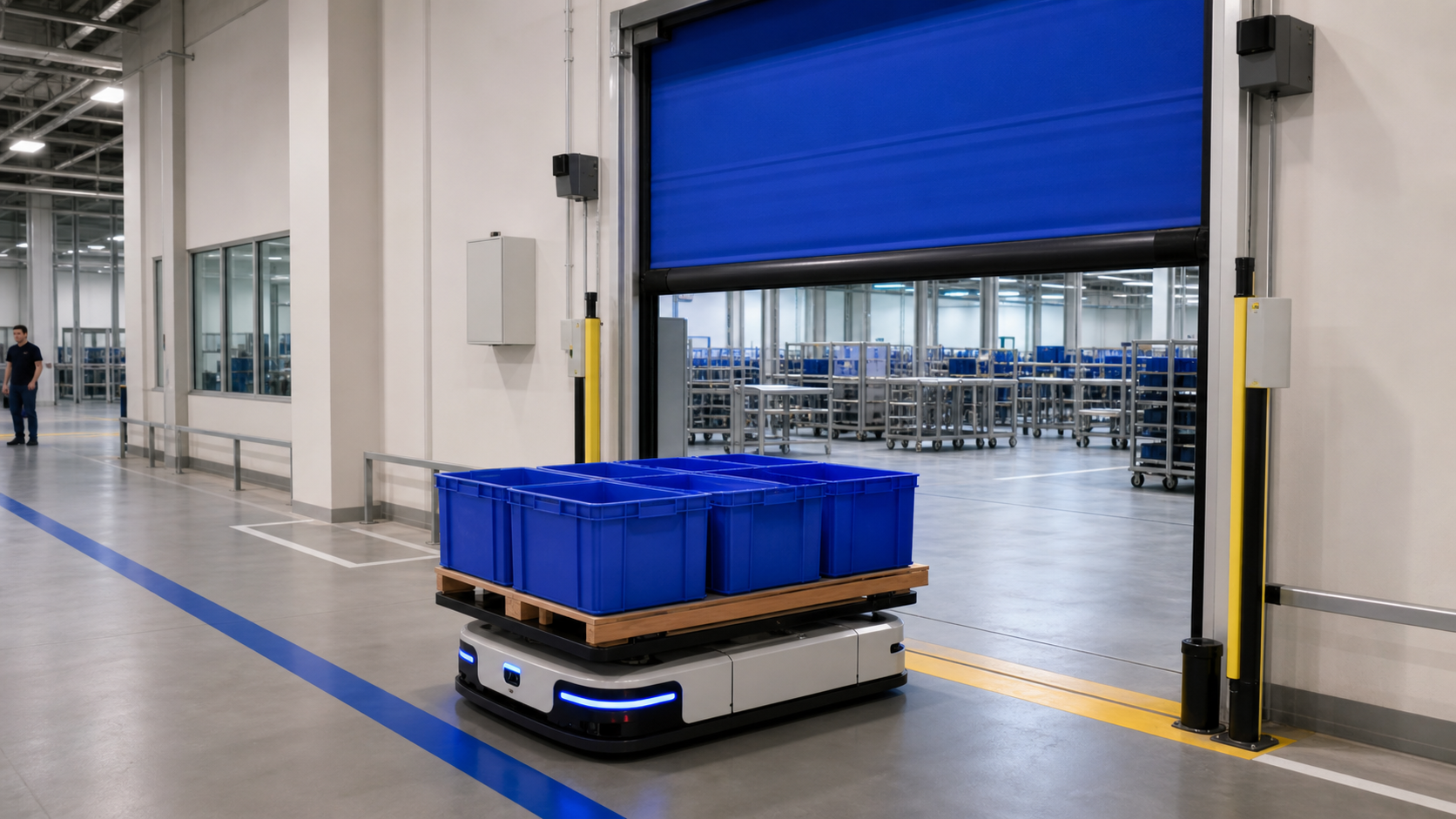

An automated high-speed door on an AGV or AMR route should open only after a valid vehicle request, confirm a clear opening zone, report its position, and leave enough time for the complete vehicle and load to pass. The door and mobile robot must also move to a defined safe state when a sensor, communication link, controller, or power source fails. This evergreen specification guide explains the control handoff, safety sensors, mixed-traffic rules, traffic workflow, and acceptance tests that warehouse teams should settle before procurement.
The important point is that a fast door is not a stand-alone safety system, and an AMR’s obstacle detection does not automatically make the doorway safe. The opening, robot route, people, adjacent traffic, fire strategy, and controls form one application. A qualified integrator should validate that application against the rules and standards that apply in the installation jurisdiction.
Why automated high-speed door integration needs its own design
A conventional automatic door usually reacts to a local detector. An AGV or AMR doorway has a longer sequence: a fleet controller or vehicle requests access; the door controller checks permissives; the door opens; position feedback releases the vehicle; the entire load clears the threshold; and the door closes without exposing another road user to motion.
This sequence can become a logistics bottleneck if door cycle time, approach distance, route speed, or queue length is guessed. It can become a hazard if a request signal is treated as proof that the opening is clear. Start with a traffic map showing vehicle dimensions, load overhang, stopping distance, turning envelope, peak arrivals, pedestrian crossings, forklift movements, and possible queues. SCILEAD’s logistics passageway overview provides application context for frequent-use openings, while its production-line protection and AGV integration page describes the need for synchronized controls.
Define the control handoff before selecting hardware
A procurement specification should name the owner of each decision rather than list a preferred protocol without context. The fleet manager normally decides that a particular vehicle may approach. The door controller normally decides whether its own opening conditions are satisfied. A safety-related function should not depend on an ordinary wireless request unless the completed risk assessment and control architecture explicitly support that design.
Use a clear request-permit-pass-complete sequence
- Request: the identified vehicle enters a controlled approach zone and requests passage.
- Permission check: the integration layer confirms route direction, door availability, interlocks, and any access or process conditions.
- Opening: the door controller checks its protective devices and commands the opening cycle.
- Open confirmation: a dependable position signal confirms sufficient clear height before the robot proceeds. A timer alone is not position feedback.
- Passage: the robot moves through at the validated speed while doorway protective functions remain active.
- Clear confirmation: the system confirms that the vehicle and its complete load have left the protected opening zone.
- Closing: the door closes only when closing is permitted, then reports closed status and releases the next route movement.
Document the signal list, signal polarity, timeouts, ownership, diagnostic messages, and reset authority. Avoid a vague requirement such as “compatible with AMR.” Compatibility must be demonstrated for the selected door controller, fleet system, interfaces, and operating environment. The ISO 3691-4:2023 overview identifies the control system, guidance means, power system, and operating-zone condition as parts of driverless industrial-truck safety. It covers vehicles commonly called AGVs and AMRs, but a project team must still determine its applicable jurisdiction and full standards set.
Build safety around the doorway, not one sensor
The doorway creates a constrained area where a moving curtain, vehicle, load, people, columns, and other traffic can converge. Use the site risk assessment to define protective fields and device placement. Possible devices include presence detection in the opening, door-edge protection where applicable, vehicle detection, position feedback, warning indicators, emergency stops, and the robot’s own safety-rated scanners. Their required performance and behavior depend on the application; more sensors do not automatically produce a safe system.
The U.S. Department of Veterans Affairs’ AGV and AMR System Design Manual, written for VA healthcare projects, offers a useful jurisdiction-specific example rather than a universal rule. It calls for doorway sensors that prevent opening when a person or object is in the opening zone, controlled speeds and detection zones at reduced-clearance doorways, warnings where people and vehicles meet, and interlocks that prevent contact between vehicles and open doors. Warehouse designers can use those principles as prompts, then apply their own governing requirements and risk assessment.
Separate traffic where practical
Physical separation is usually easier to validate than complicated behavioral rules. If layout permits, provide different openings or clearly segregated lanes for autonomous vehicles and people. Where traffic must mix, define who has priority, where people can wait, what the visual and audible warnings mean, how forklifts are detected, and how the robot behaves when someone enters the approach or threshold zone.
Do not place a normal AMR queue across a pedestrian route, fire-door closing area, emergency access path, or the operating envelope of another door. Account for the load, not only the vehicle chassis. A pallet, cart, or long material can remain in the opening after the robot body has cleared a detector.
Specify fail-safe behavior and recovery
Every expected fault needs an explicit response. Consider loss of the request signal, contradictory door-position signals, a blocked protective field, door controller fault, robot localization loss, fleet-server outage, emergency stop, and loss or restoration of power. The default should not be “continue and hope the next message arrives.”
- If open confirmation does not arrive within the allowed time, the vehicle should stop before the validated boundary and the system should raise a diagnosable fault.
- If the opening becomes obstructed, the door and vehicle should follow the risk-assessed protective response; neither should automatically force passage.
- If communication fails during passage, the design should preserve safe clearance and avoid trapping the load under a closing door.
- After power restoration, automatic restart should occur only when states are known, protective zones are clear, and the approved reset logic is satisfied.
- Manual release and maintenance modes should be controlled, documented, and available only to trained personnel.
OSHA’s Industrial Robot Systems and Industrial Robot System Safety technical manual emphasizes task-based risk assessment, validation, worker training, field observation, and review when safeguards prove ineffective. It is guidance for U.S. workplace inspections, not a door specification or a guarantee of compliance, but its lifecycle approach is relevant to an integrated opening.
Match the door to the traffic workflow
Choose the opening only after the sequence and environment are understood. Measure clear width and height against the largest loaded vehicle and turning approach. Record indoor or exterior exposure, pressure differences, wind, dust, temperature, washdown needs, and desired separation between zones. Then compare door construction, controls, cycle capability, sensing options, maintainability, and the supplier’s ability to provide the required interfaces.
A flexible fast-opening product may suit many interior logistics routes. SCILEAD’s zipper high-speed door page is one product-family starting point, not a universal recommendation. The final selection should be based on opening dimensions, environment, duty, safety concept, and validated integration requirements. For broader operational context, review the existing high-speed door guide for logistics centers; this article intentionally focuses on the distinct controls and doorway-integration intent.
Use a measurable acceptance test
Factory testing can confirm interfaces, but site acceptance must use the installed route, vehicle, load, network, and door. Record pass or fail evidence for normal travel in both directions, the largest permitted load, consecutive vehicle requests, and peak-flow queuing. Verify approach permission, open-position feedback, clearance detection, close permission, and readable fault messages.
Challenge the system with a person or test object in each defined detection zone using the approved test method. Simulate lost communications, unavailable fleet control, sensor faults, emergency stops, power interruption, and restart. Confirm that manual recovery does not silently bypass safeguards. Retest after software changes, route changes, door-control changes, sensor relocation, or a materially different vehicle or load.
Trend door faults, blocked-zone events, abnormal waits, manual overrides, and near misses after handover. These records reveal whether the design matches the real traffic workflow and help maintenance teams distinguish a door issue from a route, sensor, network, or fleet-control problem.
Frequently Asked Questions
Can an AMR open a high-speed door directly?
It can request opening through a designed interface, but the door controller should open only after the required permissives and protective conditions are satisfied. The exact architecture must be validated for the application.
Is the AMR safety scanner enough to protect the doorway?
Not by itself. The doorway risk assessment must cover door motion, the complete load, people, other vehicles, fixed clearances, control failures, and the operating zone.
What feedback should the door send to the fleet system?
Commonly useful states include available, opening, sufficiently open, closing, closed, obstructed, and fault. The final signal list, definitions, diagnostics, and safety integrity must be project-specific.
Should people and AMRs use the same door?
Separate openings or segregated lanes are preferable where practical. If traffic must mix, define priority, protective zones, warnings, speed behavior, queuing, and validation in the site risk assessment.
When should the integrated route be retested?
Retest after relevant changes to software, route geometry, traffic, sensors, door controls, vehicle type, load envelope, or safety logic, and at the interval required by the approved maintenance and risk-management plan.
Turn the doorway into a controlled part of the route
The best automated high-speed door integration starts with traffic and hazards, then assigns control ownership, selects devices, and proves the complete sequence. SCILEAD can review opening conditions and door-interface requirements with the customer’s automation integrator. Contact SCILEAD for a technical discussion with the route drawing, opening dimensions, vehicle and load envelope, traffic matrix, environment, interface list, and applicable jurisdiction.
